A Brut de Forge Dagger from 2016

Posted in Blacksmithing, bladesmithing, brutdeforge, EDC, knifemaking, Leather working, metalwork, Uncategorized with tags , , , , , , , , , , , on December 13, 2016 by Jim

I met Joe Keeslar  this year at the ICCE knife show this year and I wanted to make a dagger in his style. Below are some photos of the process.



Here it the initial forging. I started with 1.5″ x 1/4″ 1084 steel:

hotdagger

Here is the forging complete:

finishedforgingdagger

Profiled and finish ground:

finishgrounddagger

Then a mystery wood handle (rosewood or ironwood, not sure – it was a gift):

finisheddagger

A handle detail showing the sterling silver and copper pins:

daggerhandle

I etched my logo:

daggerwithsmalllogo

I also made the sheath:

rattlesnakesheathcloseup

And here is the entire package:

daggerinsheath

This was a really fun build – it pushed my abilities in both blade and sheath and I am happy with how it turned out.

Thanks for looking – keep making,

Jim

Advertisements

Two Bob Loveless Style Hunters in 01

Posted in knifemaking, metalwork with tags , , on August 27, 2011 by Jim

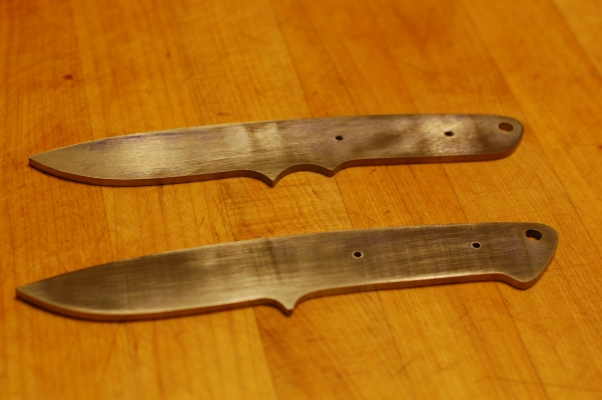

I plan to make this a set of three knives. I have two roughed out and plan to cut the third in a similar style to the Loveless chute knife.

Here is how far I got tonight.

These are in 01 steel.

Happy making,

Jim

Making a knifemaking file guide for for two dollars

Posted in Gear Making, knifemaking, metalwork, Tool Making with tags , , on July 29, 2011 by Jim

For my current dagger project, I am worried about getting the plunge lines straight and equal; that and the edges of the ricasso where they meet the guard. I have known about file guides for a while but have a hard time spending fifty dollars to get one. Or even $150 to get the really nice carbide faced one from Uncle Al’s.

Here is one I made last night in the shop.

Knife filing jig made from 0-1 steel

The most expensive parts on this jig were the bolts. Two of them for $0.98. The rest is scrap from around the shop. I spent a couple hours getting it together.

The jaws are O-1. The guide rods were scrap 3/8″ rod stock. I drilled four holes and tapped two opposing holes in each piece.  I checked that everything was ground flat, square, and parallel as I could get by hand. I don’t have a mill. I hardened with straight soybean oil from the grocery store.  I just barely tempered the O-1 (350 for an hour). I wanted to leave the face hard so files will not wear thorough them.

These are not as pretty as store bought but I think they will work just fine.

O-1 hardened knife filing jjg
